Fact and Dimension Tables: Data Modeling Guide 2026

Master fact and dimension tables for better business intelligence. This guide covers data modeling, schemas, SQL examples, and common pitfalls.

You probably know the meeting. Sales says revenue is up in one dashboard and flat in another. Finance exports a CSV that doesn't match either. Operations wants inventory by region, but the report takes forever and still mixes old product categories with new ones. Everyone agrees the company has plenty of data. Nobody agrees on the answer.

That problem usually isn't about missing dashboards. It's about missing structure.

In analytics, fact and dimension tables are the organizing system that turns scattered operational data into something a business can trust. They help teams answer simple questions consistently: what happened, when did it happen, who was involved, which product was affected, and how did results change over time. Without that separation, reporting turns into a tangle of duplicated fields, slow queries, and arguments over definitions.

Why Your Data Needs Structure

A project manager can inherit a reporting environment that looks organized on the surface and still be missing the one thing analytics depends on: a shared structure for meaning. Orders sit in one application. Customer details live in another. Product attributes change over time. Finance saves monthly extracts. Marketing adds campaign tags in spreadsheets. The data exists, but the business questions cross system boundaries, and that is where confusion starts.

The problem is not only inconsistent totals. It is that the same row can mean different things to different teams. One analyst treats an order line as the unit of analysis. Another uses the invoice. A third joins current customer geography onto historical sales and implicitly rewrites the past. Once that happens, every KPI built on top of those choices becomes harder to defend.

A dimensional model gives each dataset a job. One set of tables stores the business activity being measured. Another stores the descriptive context used to group, filter, and compare that activity. The result is less ambiguity in reports, fewer accidental many-to-many joins, and a model that can answer business questions without rebuilding logic each time.

A useful business comparison is a sales ledger and a customer address book. The ledger records transactions. The address book explains who the customer is and where they belong. If someone keeps rewriting old ledger entries every time a customer moves, trend reporting falls apart. Analytics has the same problem when historical context is not modeled carefully.

That matters even more in real projects than in textbook examples. Teams often need to report on balances, inventory snapshots, account status, or conversion rates. Those are not all simple sums. Some metrics are semi-additive. Some are non-additive. Some need point-in-time context to stay accurate. The underlying structure determines whether those metrics can be trusted in a warehouse, a semantic layer, or a lakehouse table built for BI.

If you review source contracts before mapping upstream fields into analytical tables, a visual aid like a client-side XSD schema tool can help you inspect structure early. If those source feeds still arrive as inconsistent files and extracts, this guide on how to build a data pipeline is a useful companion to the modeling work.

Practical rule: If two teams cannot agree on what one row represents, they will not agree on any KPI built from it.

Kimball's dimensional method made warehouse design workable because it starts with business use, not with source-system convenience. The usual sequence is straightforward: choose the business process, declare the grain, identify the dimensions, and then identify the facts. Kimball Group's dimensional modeling guidance explains that same discipline in practical terms for analytical design.

What business leaders actually gain

A well-structured model gives leaders three immediate benefits:

Consistent reporting: Sales, finance, and operations use the same analytical definitions.
Faster analysis: Analysts spend less time repairing joins and more time answering business questions.
Reusable design: New dashboards and data products can build on shared tables instead of starting over.

This is why structure matters. Fact and dimension tables are not only warehouse terminology. They are the framework that keeps historical reporting stable, makes metric definitions repeatable, and lets modern platforms support analysis without recreating business logic in every dashboard.

The Core Duo Fact Tables and Dimension Tables

A project manager asks a simple question: "Why did revenue drop in the Northeast last month?" If your warehouse stores everything in one wide, messy table, that question turns into an argument about duplicate customer records, changing product names, and which date column to trust. If the model separates measurements from business context, the answer is much easier to find.

A fact table works like a sales ledger. It records business activity at a defined grain, such as one order line, one invoice payment, or one daily inventory snapshot. Each row captures something the business wants to count, total, compare, or trend over time.

A dimension table works like the reference material people use to interpret that activity. It might hold the customer profile, product hierarchy, store details, or calendar attributes that give business meaning to the numbers. Facts carry the numeric outcomes. Dimensions supply the labels, categories, and groupings that make those outcomes useful in analysis.

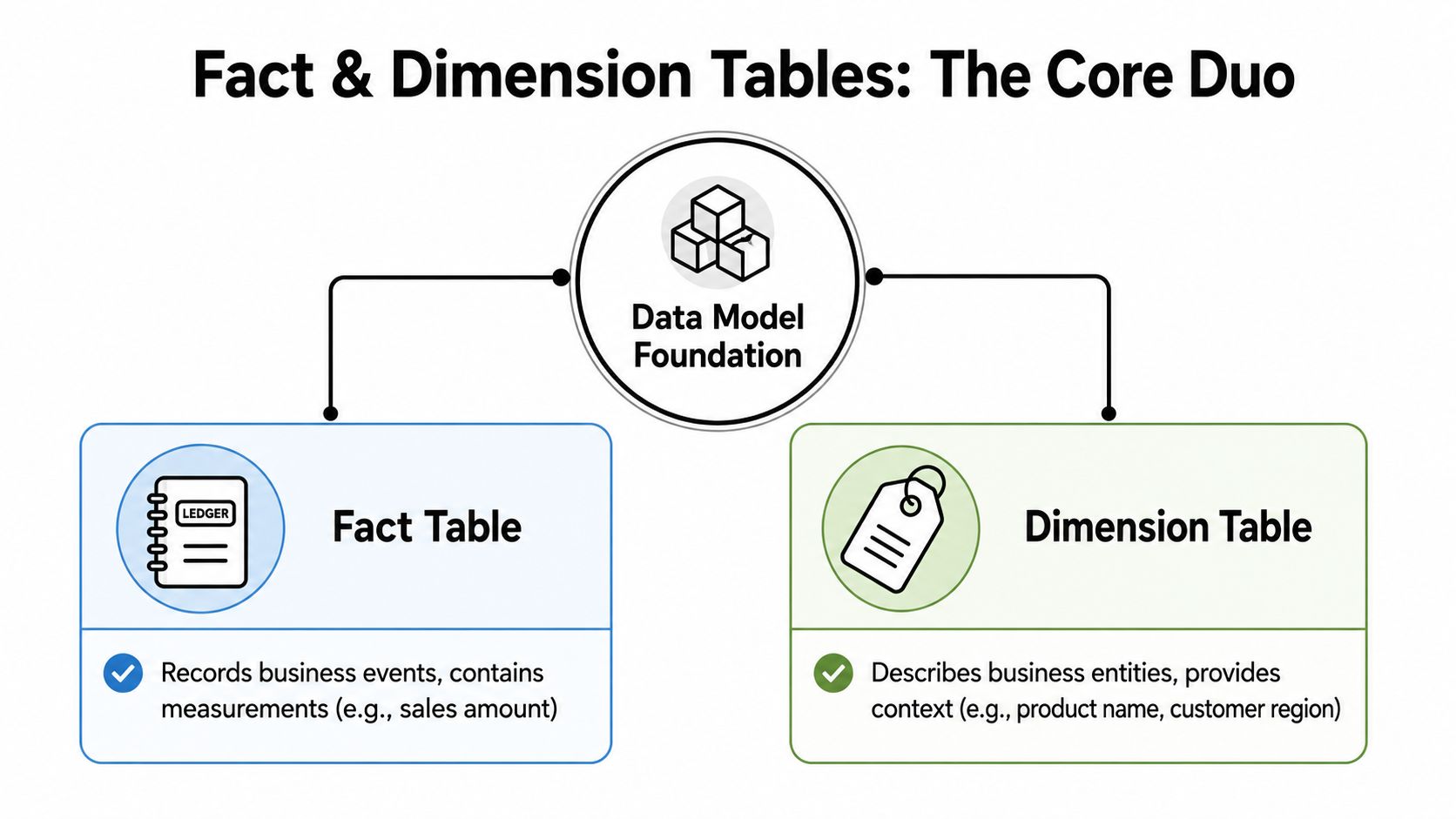

A diagram illustrating the difference between fact tables and dimension tables in data modeling foundation.

What goes in a fact table

A fact table usually contains three kinds of content:

Foreign keys: links to dimensions such as customer, product, date, store, or channel
Measures: values such as quantity, sales amount, discount, cost, count, or elapsed time
Operational identifiers: sometimes an order number, invoice number, or transaction ID for traceability

What it usually does not contain is lots of repeated descriptive text. You do not want the full customer address, product description, and store hierarchy copied into every sales row unless there is a specific modeling reason.

The practical test is simple. If analysts ask, "How much?", "How many?", or "How long?", the answer often starts in a fact table.

What goes in a dimension table

A dimension table holds the business descriptors used to slice and interpret facts. For a product, that could be brand, category, size, and department. For a customer, it could be segment, region, industry, and status. For a date, it could be fiscal period, holiday flag, weekday name, and quarter.

This is the part new teams often underestimate. Dimension design is not decoration. It determines whether executives can ask useful questions in business terms instead of technical ones.

A revenue number by itself has limited value. Revenue by customer segment, region, product family, and month turns into a decision.

Dimension tables also carry history in many real projects. If a customer moves from SMB to enterprise, or a product shifts from one category to another, the model may need to preserve both the old and new context so trend reports still make sense. That is one reason dimensional modeling remains relevant even on modern lakehouse platforms. Storage got cheaper, but business definitions did not get simpler.

Why the split matters

Keeping facts and dimensions separate reduces duplication and makes analytics more stable. One customer record can describe thousands of transactions. One product hierarchy can support finance, merchandising, and supply chain reporting without being rewritten in every dashboard.

It also protects metric quality. Teams run into trouble when they mix descriptive changes directly into event data. A product rename can suddenly make last quarter look like two different products. A customer region update can overwrite history and distort trend analysis. The fact and dimension pattern helps prevent those reporting surprises because measurements and descriptive context are modeled with different jobs in mind.

There is a second benefit that becomes more obvious as models mature. Some measures are straightforward to add, like units sold or freight cost. Others are not, such as account balance, inventory on hand, conversion rate, or margin percentage. Those harder cases depend on grain, time, and business context. A clean fact and dimension structure gives teams a disciplined starting point for modeling those non-additive or semi-additive metrics instead of burying them in one oversized table.

Here is the working mental model:

Table type	Business analogy	Main purpose
Fact table	Sales ledger	Record events, states, or measurable outcomes
Dimension table	Address book, catalog, or calendar	Describe the business context around those outcomes

Once this distinction is clear, warehouse design stops feeling abstract. You can look at any reporting request and ask two grounded questions: what is the business event or measurement, and what context do people need to interpret it correctly?

Key Building Blocks Types of Facts and Dimensions

Beyond basic definitions, fact tables are categorized by the business problem they solve: transaction logging, periodic measurement, and process tracking.

That distinction matters because a sales team, a finance team, and an operations team do not ask the warehouse for the same kind of truth. One group wants every order line. Another wants month-end balances. Another wants to know how long cases sit in each stage. If all three needs are forced into one table pattern, reporting gets messy fast.

Three common fact table types

A good way to separate them is to compare a receipt, a daily inventory count, and a shipment tracker. All three contain business facts, but they describe different moments.

Transaction fact table
This table records individual business events. One row usually represents a single action such as an order line, a payment, a shipment, or a click. It works like a sales ledger. You use it when analysts need detail, auditability, and flexible rollups across customers, products, channels, or dates.
Periodic snapshot fact table
This table records the state of something at a regular interval, such as daily inventory on hand, weekly pipeline value, or month-end account balance. It works like taking a photo of the business at the same time each period. Snapshot facts are useful when the question is "what was true then?" rather than "what happened?"
Accumulating snapshot fact table
This table tracks a process that unfolds over time. An order can be placed, picked, shipped, and delivered. A loan application can be submitted, reviewed, approved, and funded. Instead of inserting a brand-new row for every milestone, the model keeps one row for the process and updates milestone dates or durations as progress happens. Microsoft's dimensional modeling guidance describes these common fact patterns in practical warehouse design terms: fact table types in dimensional modeling.

Why some metrics break simple aggregation

The trap for new analytics projects is assuming every measure behaves like revenue or units sold.

Some facts add cleanly across every dimension. Sales amount usually does. Other facts only add across some dimensions, or should not be added at all. Inventory on hand can be added across products or warehouses for the same date, but not across dates without changing the meaning. Ratios such as margin percent or conversion rate should usually be recalculated from their components, not summed from stored percentages.

That is why grain and table type matter. A balance is a state at a point in time. A sale is an event. Put them in the wrong structure, and a dashboard can show impressive-looking numbers that answer the wrong question.

Oracle's dimensional modeling documentation explains additive, semi-additive, and non-additive measures in a way that helps teams choose the right storage and aggregation pattern: additive and nonadditive facts.

This becomes even more practical in lakehouse projects. Teams often land raw CDC streams first, then shape them into analytics models later. The modeling rules do not disappear because the storage layer changed. If anything, they matter more because raw change events can easily be mistaken for ready-to-query business facts. A useful example is mapping real-time data to star schema, where event streams still need clear fact types, conformed dimensions, and careful handling of historical state.

Dimensions have types too

Dimensions also vary by purpose.

Some are straightforward reference lists, such as product, store, or sales rep. Others are time-aware and need to preserve history, especially when analysts care about the context that was true when the event occurred. A customer may move to a new region. A product may move into a new category. A contract may switch account managers.

If you overwrite those attributes, old facts get re-labeled with new context. Last year's sales can appear under this year's category structure. Nothing is technically broken in the SQL. The model is.

Type 1 and Type 2 in plain language

Type 1 change: overwrite the old value with the new one. Use this for corrections, spelling fixes, or attributes where history does not matter.
Type 2 change: create a new version of the dimension row so past facts stay tied to the historical value that was true at the time.

A project manager does not need to memorize every slowly changing dimension variant. One question usually gets the team to the right design: Will the business want to report this attribute as it was when the event happened?

If the answer is yes, preserve history. If the answer is no, overwrite may be fine.

That single decision shapes whether trend reports stay credible six months from now, especially once the model grows beyond textbook examples into balances, pipelines, service workflows, and modern lakehouse pipelines.

Designing Your Data Model Star vs Snowflake Schemas

Once you know what facts and dimensions are, the next question is how to arrange them.

The two classic patterns are star schema and snowflake schema. Both organize analytics around a central fact table, but they make different tradeoffs.

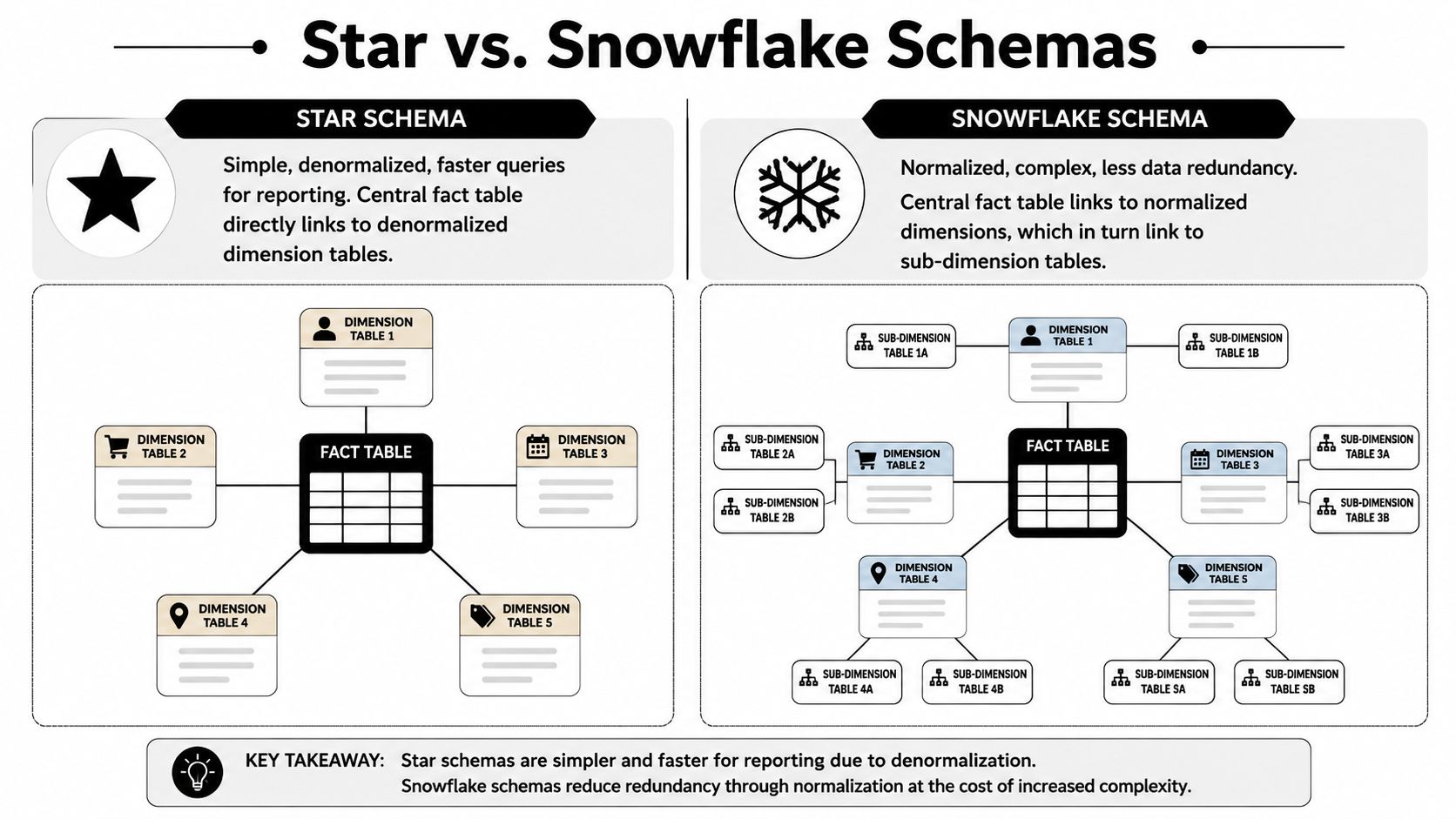

A diagram comparing star and snowflake data schemas showing fact and dimension table relationships in databases.

Star schema in business terms

A star schema keeps things simple. The fact table sits in the middle, and each major dimension connects directly to it. Product, customer, date, region, and channel are all easy to find and easy to join.

That simplicity matters because analytical users don't want to traverse a maze of lookup tables just to answer a sales question.

Snowflake schema in business terms

A snowflake schema normalizes some dimensions into related sub-dimensions. Product may point to subcategory, which points to category. Geography may point to city, which points to region, which points to country.

This can reduce repeated descriptive values, but it also adds join complexity. In practice, teams usually choose it when they have a specific management reason, not because it's automatically better.

Performance and structure

In star and snowflake schemas, fact tables are engineered to be narrow but very large in row volume, while dimension tables are wide and smaller in cardinality. That asymmetry is built for performance. The same source notes benchmark data showing that aggregating billion-row fact tables with surrogate keys can reduce query latency by 40 to 60% compared to natural key joins, according to this overview of fact table vs dimension table design.

Later, if you need to feed changing operational data into analytical structures, this guide on moving real-time data to star schema offers a practical view of how teams bridge transactional systems and warehouse models.

A quick video can help if you want to visualize the two patterns:

Which one should you choose

Decision factor	Star schema	Snowflake schema
Query simplicity	Strong	Weaker
Reporting usability	Strong	Moderate
Storage normalization	Lower	Higher
Join complexity	Lower	Higher

For most reporting environments, I'd start with a star. It's easier for analysts, easier for BI tools, and easier to govern. Snowflake can make sense, but only when the extra normalization solves a real maintenance problem.

Practical Modeling Principles and Best Practices

Most warehouse problems don't start with SQL. They start with unclear design decisions. The most important one is grain.

Declare the grain first

The grain defines exactly what one row in the fact table represents. One sales order line? One invoice? One customer balance at month end? If the team can't say that in a single sentence, the model isn't ready.

Mixed grain is where confusion spreads. A table that combines daily summaries with transaction-level rows may still load successfully, but it won't support trustworthy analytics.

An open notebook with lined pages on a wooden desk next to a pen and coffee mug.

Use surrogate keys for warehouse joins

Operational systems bring their own identifiers. Those are natural keys. They're useful for tracing source records, but they're often unstable, inconsistent across systems, or awkward to join on.

Warehouse models usually introduce surrogate keys, which are generated identifiers used for joins between fact and dimension tables. They provide stability, especially when the descriptive record changes over time.

This is also where project managers can prevent future rework. If teams skip surrogate keys because the source system “already has IDs,” they often regret it once they start handling history or integrating multiple systems.

Preserve history with SCD Type 2

For important attributes, the design of dimension tables needs to explicitly account for Slowly Changing Dimensions. SCD Type 2 is the industry standard for preserving historical accuracy. It adds fields such as start_date, end_date, and version_number, creating a new row for every change instead of overwriting the old one, as described in this guide to fact and dimension table design best practices.

A simple example makes this concrete:

A product belongs to Category A in March.
The business reclassifies it into Category B in June.
Sales from March should still report under Category A.

That only works if the fact row points to the correct historical dimension version.

Design test: Ask whether last year's report should change when today's reference data changes. If the answer is no, you need history-aware dimensions.

A short checklist teams can use

Define one row clearly: Write the fact-table grain in plain business language.
Separate measures from description: Keep amounts and counts in facts, attributes in dimensions.
Choose key strategy deliberately: Keep natural keys for lineage, use surrogate keys for joins.
Document business meaning: A field name alone won't tell future teams what a measure represents.

If your team is still setting warehouse standards, this article on database design best practices is a useful reference alongside dimensional modeling decisions.

Real World Example A Simple Retail Schema

Let's make this concrete with a retail sales model. Assume the business wants to analyze revenue by product, customer region, and date.

The central fact table records each sale at the order-line grain. The dimensions provide the context.

Example table shapes

FactSales

Column	Purpose
sales_key	Warehouse row identifier
date_key	Links to the date dimension
product_key	Links to the product dimension
customer_key	Links to the customer dimension
sales_amount	Measure
units_sold	Measure

DimProduct

Column	Purpose
product_key	Surrogate key
product_code	Business identifier from source
product_name	Descriptive label
category	Reporting attribute
brand	Reporting attribute

DimCustomer

Column	Purpose
customer_key	Surrogate key
customer_id	Source identifier
customer_name	Descriptive label
region	Reporting attribute
segment	Reporting attribute

DimDate

Column	Purpose
date_key	Surrogate key or calendar key
full_date	Actual date
year	Reporting attribute
quarter	Reporting attribute
month	Reporting attribute

How the query works

An analyst who wants category sales by region doesn't query the source order system directly. They join the fact table to the dimensions and aggregate the measure.

SELECTd.year,d.quarter,p.category,c.region,SUM(f.sales_amount) AS total_salesFROM FactSales fJOIN DimDate dON f.date_key = d.date_keyJOIN DimProduct pON f.product_key = p.product_keyJOIN DimCustomer cON f.customer_key = c.customer_keyWHERE d.year = 2025AND d.quarter = 4GROUP BYd.year,d.quarter,p.category,c.regionORDER BYp.category,c.region;

That query is readable because the model is readable. The fact table contributes the measurable event. The dimensions provide the business language. A project manager doesn't need to write SQL daily to see the advantage. This design makes requirements easier to translate into reports.

It also creates room for growth. The company can add a store dimension, a promotion dimension, or a returns fact later without redesigning the whole warehouse.

Common Pitfalls and Modern Data Architectures

A team launches a new executive dashboard on a modern cloud platform. The charts look polished, the queries run fast, and confidence is high. Then the CFO asks a simple question about inventory trends and gets three different answers from three reports.

That problem usually starts in the model, not the dashboard.

One of the most common mistakes is treating every measure as if it behaves like sales revenue. Revenue is often additive. You can sum it across days, stores, and products. Inventory balance is different. It works more like a bank balance than a sales receipt. Summing daily balances across a month usually creates nonsense. Ratios and rates have the same issue. They need rules for averaging or weighting, and those rules should be designed into the model instead of left to each analyst.

This is why fact design gets more nuanced in real projects than beginner guides suggest. Transaction facts, periodic snapshots, and accumulating snapshots exist for different business questions. If a team stores a month-end inventory balance in the same way it stores line-item sales, reporting errors become hard to spot and even harder to explain in a steering committee.

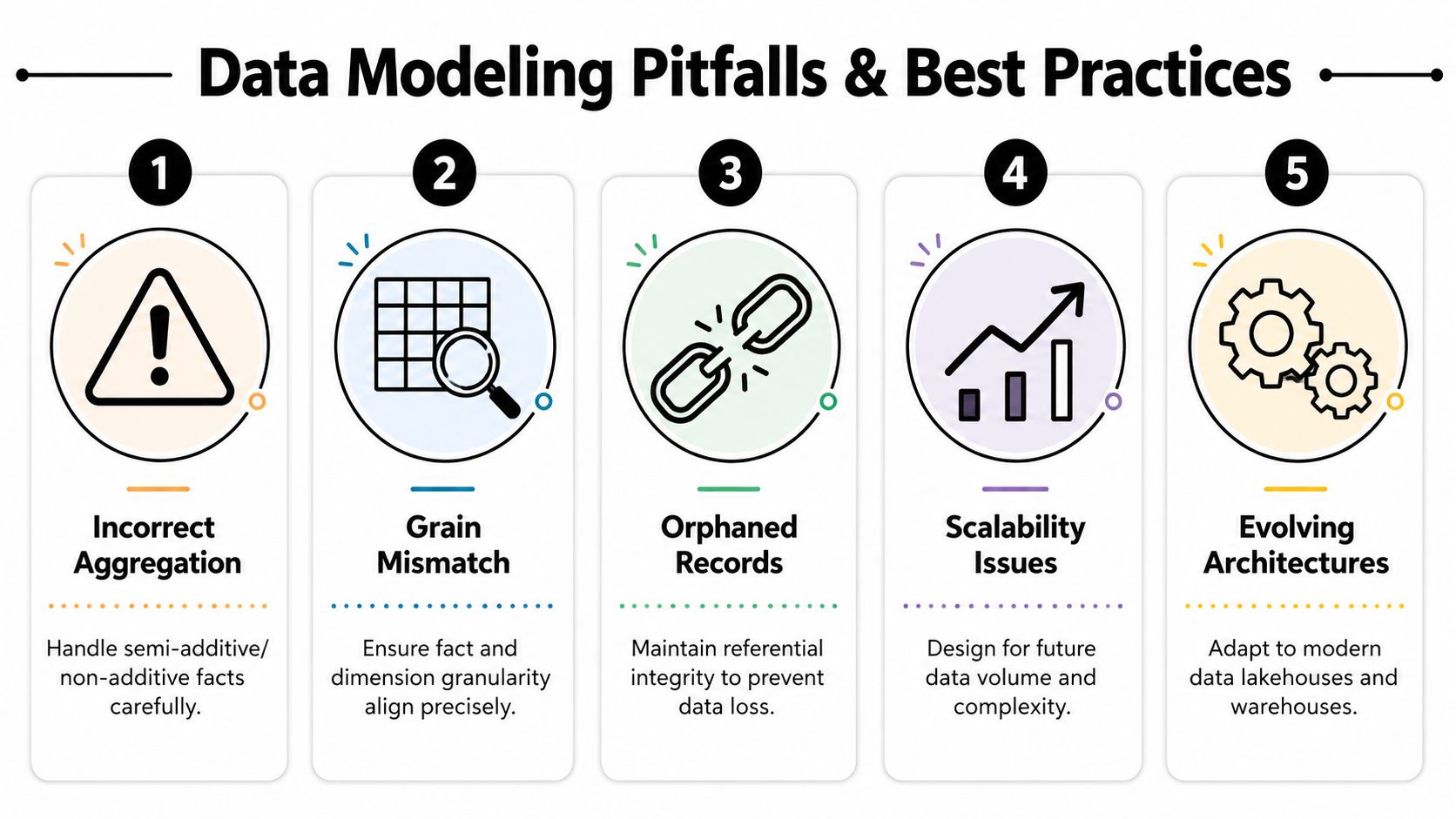

A diagram outlining five key data modeling pitfalls and best practices for developers and analysts.

Pitfalls that damage reporting

Grain mismatch: The fact table records one level of detail, but a joined table reflects another. The result is duplicated counts, missing rows, or inflated totals.
History loss: A customer or product attribute gets overwritten instead of tracked over time, so past reports change when current values change.
Overloaded dimensions: A dimension becomes a catch-all table for unrelated attributes, which makes ownership unclear and reporting logic messy.
Weak governance: Sales, finance, and operations define the same business term differently, so each dashboard becomes its own version of the truth.

Modern platforms do not excuse weak modeling. They spread weak modeling farther, faster, and to more users.

That matters even more in lakehouses and semantic-layer-driven stacks. A team may not publish a textbook star schema in the presentation layer. Some business logic may live in dbt models. Some definitions may sit in a semantic layer. Some descriptive attributes may be assembled from curated tables in the lakehouse. But the same design questions still decide whether reporting holds up under pressure.

What is the business event. What is the level of detail. Which dimensions carry shared business meaning. How is history preserved. Where is the approved definition of margin, active customer, or inventory on hand. Those are dimensional modeling questions, even if the physical architecture looks newer than a classic warehouse.

A useful way to frame the architectural choice is this comparison of data lake vs data warehouse. The storage pattern may change. The need for consistent analytical definitions does not.

Classic dimensional principles still matter because they give the business a stable reporting language. In a modern stack, that language may be expressed through tables, views, semantic models, or all three. The teams that do this well are not clinging to old warehouse patterns. They are making sure a fast-growing platform still answers basic business questions the same way every time.
