What Is Data Deduplication and How It Works

What Is Data Deduplication. Learn what data deduplication is, how it works, the main types and metrics, and the trade-offs to know before rolling it out

Data deduplication is a storage technique that stores only one copy of each unique block or file and replaces duplicates with a pointer. In large-scale systems, benchmark results show that the strategy can reduce block storage to as little as 32% of original requirements, but the same choices can also increase CPU use, memory demand, and recovery time.

You may be facing the decision during a backup review. A 200 TB backup estate grows by 15% a month, the backup window is getting harder to protect, and finance wants to know why storage keeps expanding. Deduplication looks like an obvious answer: remove repeated data, keep one copy, and point every duplicate back to it.

That description is correct, but it leaves out the engineering decisions that determine whether the result helps or hurts. You still need to decide where deduplication runs, when it runs, how the system detects similarity, how large each data segment should be, and what happens when a segment doesn't match anything already stored.

Compression and deduplication also solve different problems. Compression makes a single data stream smaller by encoding repeated patterns within that stream. Deduplication removes repetition between files, backup versions, virtual machines, or data blocks. A tax-filing analogy helps: compression is like shortening a long form by using compact notation, while deduplication is like filing one shared document and giving each department a reference to it.

The practical question isn't, “Can this platform deduplicate?” It's whether the savings justify the resources and operational complexity. The sections below examine the main types, the fingerprinting pipeline, the metrics that matter, and the workloads where the trade-off makes sense. For a concise terminology reference, this glossary of data deduplication is useful when storage, backup, and data-management teams need a shared vocabulary.

What Data Deduplication Really Means

Return to the backup estate. Several systems may contain the same operating-system files, application binaries, database pages, and unchanged documents. A conventional backup repository writes those repeated bytes again, while a deduplicating repository stores one unique copy and records references for the other appearances.

At the simplest level, data deduplication keeps one copy of each unique file or block and replaces duplicates with pointers. When an application requests a file, the storage system follows those references and reconstructs the original view. The file appears complete to the application even though the physical layout may contain shared segments.

The decisions behind the simple definition

The first decision is granularity. File-level deduplication treats an entire file as the comparison unit. Block-level deduplication splits files into smaller chunks, allowing two files that differ in only one region to share their unchanged content.

The second decision is placement. Source-side deduplication identifies duplicates before data crosses the network. Target-side deduplication receives the data first and performs the work at the backup repository or storage appliance. The first approach can reduce network traffic but consumes resources closer to the workload. The second centralizes processing but may require more bandwidth.

Timing matters too. Inline deduplication checks data before writing it, while post-process deduplication writes first and removes duplicates later. Inline processing can reduce the immediate physical footprint, but it places fingerprinting and lookup work directly in the write path.

Practical rule: Treat deduplication as a capacity, performance, and recovery decision. Storage savings alone aren't enough to approve a design.

The final decision is scope. A global index may find matches across workloads, whereas a local index limits comparisons to a volume, job, or storage pool. Broader scope can reveal more redundancy, but it also makes the index and its failure handling more important. The deduplication ratio, calculated as original data size divided by physically stored size, gives the headline result. The rest of the article explains why that ratio is an outcome of several design choices, not a permanent property of the product.

The Main Types of Deduplication Explained

Storage architects usually classify deduplication across several independent axes. A product may be described as an appliance, software platform, or cloud service, but those labels don't tell you where the trade-offs sit.

Granularity defines what can match

File-level deduplication compares complete files. If two files are identical, the system stores one copy and references it from both locations. This approach is easier to implement and typically needs less metadata.

Block-level deduplication compares portions of files. A 2016 IEEE survey describes file-level and chunk-level operation and gives 8 KB as a common chunk-size example in storage implementations in its survey of data deduplication. Smaller units can identify shared content after a file is renamed or partially edited, because the unchanged blocks remain recognizable.

Timing determines write-path pressure

With inline deduplication, the system chunks, fingerprints, looks up, and either stores or references data before completing the write. That can limit incoming bandwidth and physical capacity, but the write path must absorb the processing.

With post-process deduplication, the system writes incoming data first and cleans duplicate content afterward. This can preserve peak ingest throughput, but the repository needs temporary capacity and a schedule for cleanup.

Location determines who pays

Source-side deduplication shifts fingerprinting toward the client, host, or backup agent. It can reduce network transfer, especially across constrained links, but it adds work to production systems.

Target-side deduplication places the processing at the backup server or appliance. This simplifies endpoint deployment and centralizes management, though the target must handle the processing and receive the data stream.

Scope determines dictionary size

Global deduplication maintains a broad comparison scope across workloads or repositories. Local deduplication uses a narrower pool, which can simplify indexing and fault isolation but may miss matches elsewhere.

Axis	Option A	Option B	Trade-off
Granularity	File-level	Block-level	Simplicity and lower metadata overhead versus finer matching
Timing	Inline	Post-process	Immediate savings versus less write-path work
Location	Source-side	Target-side	Lower network usage versus centralized processing
Scope	Global	Local	Wider matching versus a larger, more complex index

A design review should document all four axes. Choosing a “deduplication appliance” without recording its granularity, timing, location, and scope leaves the most important engineering questions unanswered.

How Hashing, Fingerprints, and Chunking Work

A deduplication pipeline must first turn incoming data into comparable units. It then calculates an identity for each unit and checks an index before deciding whether to store new bytes. Every stage saves capacity only by spending resources elsewhere, such as CPU time, memory, metadata space, or recovery work.

First, split the data

Fixed-size chunking divides a file into equal segments. It is predictable and easy to manage, but an insertion near the beginning shifts every later boundary. Two otherwise similar files may then produce few matching chunks.

Variable-length chunking, also called content-defined chunking, uses a rolling hash to place boundaries according to the data itself. After bytes are inserted, unchanged regions have a better chance of retaining their boundaries. The benefit is finer matching. The cost is more computation and more complex boundary management.

Chunking is easier to understand with a file revision. If a short block is inserted near the start, fixed boundaries can make the rest of the file look new. Content-defined boundaries can isolate the insertion and preserve references to later content. That can reduce stored data, but the system must calculate boundaries and maintain more chunk metadata. The right method depends on whether those processing and indexing costs fit the workload.

The IEEE survey's 8 KB example shows the fine-grained scale that implementations may use when moving beyond whole-file comparisons in its technical discussion of deduplication.

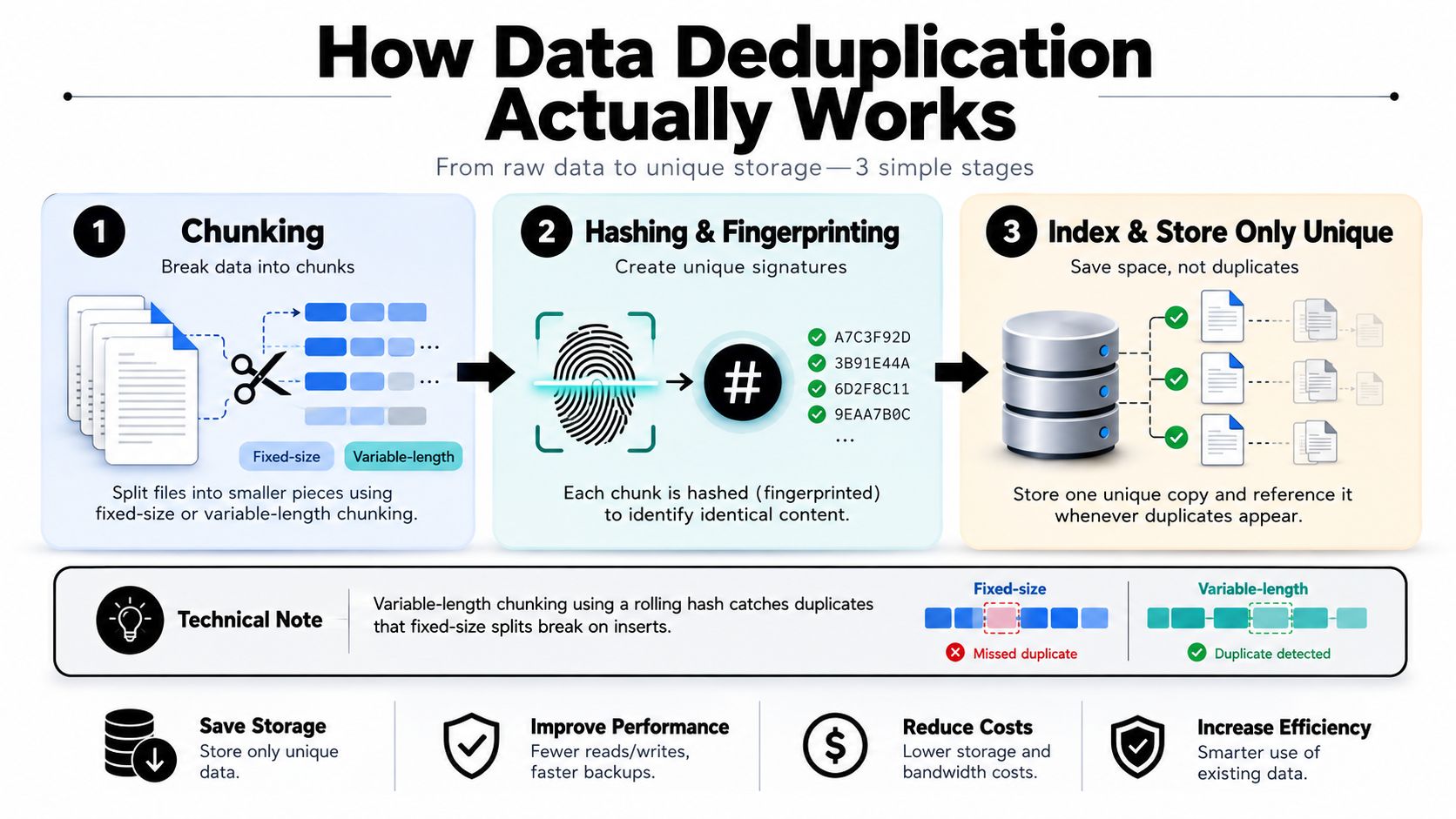

A diagram illustrating the three simple stages of data deduplication: chunking, hashing, and storing unique data.

Next, create a fingerprint

The system calculates a hash for each chunk. Common choices include MD5, SHA-1, and SHA-256. A stronger hash may reduce collision concerns, but it does not remove the need for safeguards. Production systems should verify suspected matches, protect metadata, and detect corruption instead of trusting a fingerprint blindly.

If the fingerprint already exists, the system records a reference to the stored chunk. If it does not, the system writes the new chunk and adds its fingerprint and location to the index.

Finally, search the index

The index maps a fingerprint to a physical address and reference information. Hot entries may reside in memory while the complete catalog remains on persistent storage. As the protected dataset grows, index placement and lookup behavior can affect responsiveness as much as the hash calculation.

Research reported throughput near 950 MB/sec for mostly unique data and up to 6 GB/sec for highly duplicate data, with deduplication efficiency no less than 97%, while requiring about 10 GB of memory per 200 TB of raw storage in an IBM study of deduplication techniques. These results show the constraint clearly: repetitive data can reward deduplication, while unique data still consumes comparison and indexing resources.

Key Metrics That Tell You If Deduplication Is Working

A deduplication ratio is the headline number every evaluator asks for, but it leaves restore speed, ingestion rate, and memory footprint unanswered:

Deduplication ratio = original logical data size ÷ physically stored data size

A ratio of 5:1 means a logical dataset occupies one fifth of its original physical footprint, before other storage overheads. Treat that figure as one measurement in a larger operating picture. The platform may save capacity while missing the backup window, slowing restores, or consuming too much memory for its index.

Read the numbers as a set

Space savings ratio expresses the reduction against the logical footprint. If physical storage represents 32% of the original requirement, the avoided capacity is the remaining difference. IBM benchmark work found that block-level techniques could reduce storage to as little as 32% of original requirements in its deduplication comparison.

Ingest throughput measures how quickly the platform accepts data. A strong reduction result paired with falling ingest speed can still fail the backup window. Restore latency measures the time required to reconstruct a file, virtual machine, or database. Reads may follow many references rather than one contiguous physical stream, so restore performance needs its own test.

The same benchmark found that space savings varied by about 30% across techniques, CPU usage differed by nearly 6×, and file reconstruction time varied by more than 15×. These results show the trade-off clearly: pursuing more reduction can impose a materially different processing or recovery cost, as noted earlier in the IBM study.

Metric	Formula	What It Tells You	Typical Range
Deduplication ratio	Logical size ÷ physical size	Capacity represented by stored data	Workload-dependent
Space savings	Avoided physical capacity ÷ logical capacity	Reduction achieved	Workload-dependent
Ingest throughput	Accepted data ÷ elapsed time	Ability to meet backup or write windows	Platform-dependent
Restore latency	Restore completion time ÷ requested data	Recovery experience	Workload-dependent

Measure a representative sample through a full backup cycle. Record logical and physical capacity alongside ingestion rate, restoration time, CPU, and memory. Compare smaller chunks or broader deduplication scope only after establishing that baseline. Stop when the extra savings no longer justify the added index, processing, or recovery burden. That inflection point is more useful than a vendor's best-case ratio.

File-Level Versus Block-Level in Real Workloads

A file server with many identical documents favors file-level deduplication. The system assigns one identity to each complete file, stores one copy, and points duplicate files to it. That design keeps indexing and lookup work limited, provided the files really are identical.

Block-level deduplication examines smaller portions of each file. Two virtual-machine images can therefore share unchanged regions even when their names, timestamps, or modified sections differ. The same pattern appears in backup chains, where each version may alter only selected parts of a much larger dataset.

The savings depend on the workload

Research summarized earlier in the IBM study found that whole-file deduplication captured roughly three quarters of the savings of aggressive block-level deduplication for live file systems and about 87% for backup images in its analysis of deduplication strategies. The practical choice is not just maximum reduction. File-level processing may provide most of the available capacity benefit with less catalog and fingerprint work, while block-level processing can recover additional redundancy at a higher CPU, memory, and recovery cost.

Chunk selection should follow how the workload changes, not a universal preference for small or large chunks. An 8 KB chunk may fit the edit pattern of a database image or frequently revised virtual disk, allowing unchanged regions to remain reusable after localized writes. For large files that are replaced wholesale, that finer comparison may create many index entries without finding much extra reuse. A workload dominated by small, complete, repeated files may gain little from examining sub-file regions at all.

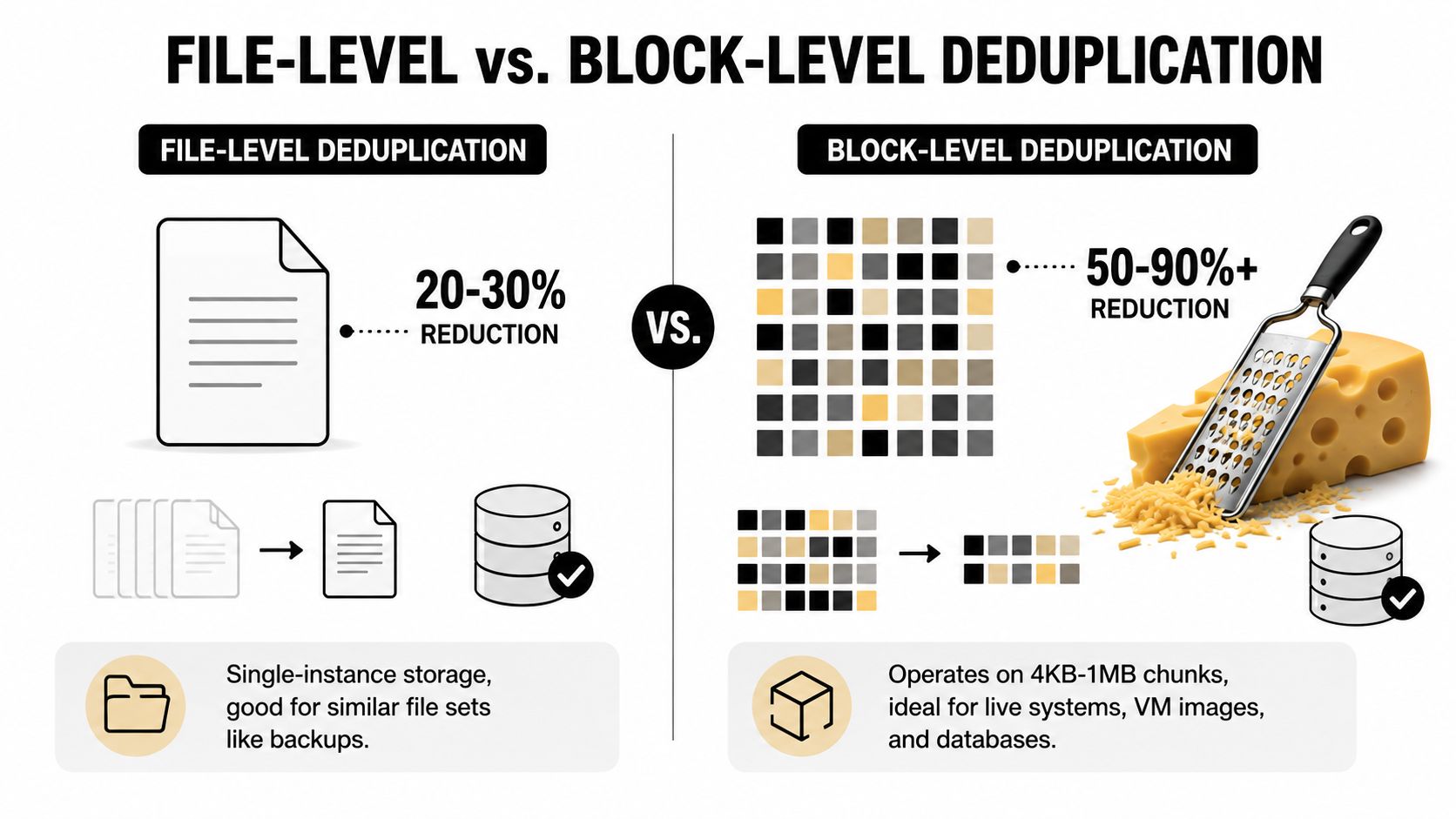

A diagram comparing file-level and block-level data deduplication methods, highlighting their efficiency and typical use cases.

Design shortcut: Choose the simplest granularity that captures the redundancy your workload actually contains.

Primary storage and user shares may suit file-level or moderately granular processing when users retain large repeated files. Backup targets and virtual-machine repositories more often justify block-level analysis because incremental versions preserve many regions while changing others. The resulting index and restore path still need capacity planning.

Test both approaches against representative data. Compare capacity, ingestion, index growth, and single-file recovery, then check whether CPU, memory, or restore latency exceeds the workload's tolerance. The right method is the one that meets capacity and recovery objectives without making savings more expensive than the problem.

Trade-offs and Hidden Costs Practitioners Underestimate

Deduplication saves physical capacity by doing more work. The system reads incoming content, splits it, creates fingerprints, searches an index, maintains reference counts, protects metadata, and reconstructs logical files during reads. Each step adds a CPU, memory, I/O, or recovery cost.

The resource bill follows logical data

Hashing every block consumes CPU. A broad index consumes memory and storage I/O. Large-scale evaluation has used about 10 GB of memory per 200 TB of raw storage as a planning point in its system evaluation. That figure is not a universal sizing rule. It does show why architects should model catalog memory instead of sizing only for reduced physical capacity.

A deduplicated file can require metadata lookups and reads from many chunk locations. Compared with a predictable sequence of locations, this access pattern can amplify random I/O. Latency-sensitive applications may suffer when restore jobs and application streams compete for the same chunk store.

Recovery and integrity need explicit designs

A duplicate reference depends on the unique chunk it identifies. If that chunk or its metadata becomes unavailable, multiple logical files may be affected at once. The design therefore needs integrity checks, protected metadata, reference management, and a tested rebuild path.

Hash collisions create another integrity concern. A matching fingerprint should identify a candidate match, not serve as unquestionable proof. Where the design requires it, the platform should verify the content itself. Replication also depends on placement. Source-side or deduplication-aware replication can reduce transferred data, while replication after expansion may send more bytes but simplify the receiving system.

Operational warning: A 90% reduction ratio does not mean a 90% reduction in operating cost. Fingerprinting, index maintenance, and recovery work still relate to the logical dataset.

Watch for these warning signs during a pilot:

Memory pressure: The fingerprint index grows beyond the platform's comfortable cache.
Ingest decline: Backup or write throughput falls as catalog and lookup work expand.
Restore slowdown: Single-file recovery becomes noticeably slower than full-stream recovery.
I/O amplification: Random reads increase latency for applications sharing the storage system.
Metadata fragility: Index rebuilds, integrity checks, or reference repairs lack a tested runbook.

Teams reviewing broader data controls can use this guide to improving data quality as a complementary operational reference. Deduplication relies on accurate metadata and clear ownership, not merely on enabling a capacity feature in a console.

Enterprise Implementation Checklist and Vendor Criteria

A production rollout should start with evidence, not a license purchase. For example, a backup platform may show an attractive capacity ratio while its fingerprint catalog consumes memory and its inline checks reduce ingest speed. The assessment must show whether the saving justifies those costs for the workloads in scope.

Assess the estate

Begin with a two-week assessment. Inventory virtual-machine images, databases, file shares, backup chains, archives, compressed content, and encrypted datasets. Sample representative data and estimate raw redundancy instead of accepting a generic ratio.

Record the current backup window, ingest rate, restore objectives, CPU headroom, and available memory. Keep primary workloads separate from backup and archival workloads because random reads and write-path processing may affect them differently. Include retention and replication requirements, since longer retention can create more sharing while also enlarging the catalog and recovery workload.

Pilot under controlled conditions

Run the first deployment on a non-critical workload for 30 to 60 days. Capture:

Capacity behavior: Logical growth, physical growth, and index growth.
Performance impact: CPU usage, ingestion throughput, and random-read latency.
Recovery behavior: Single-file, virtual-machine, and larger restore times.
Failure handling: Metadata protection, rebuild procedures, integrity verification, and replication behavior.

Compare those results with the workload's service objectives. A lower reduction ratio may be the better choice if it preserves restore targets and leaves CPU and memory headroom. A higher ratio is a poor result if catalog work delays backups or recovery.

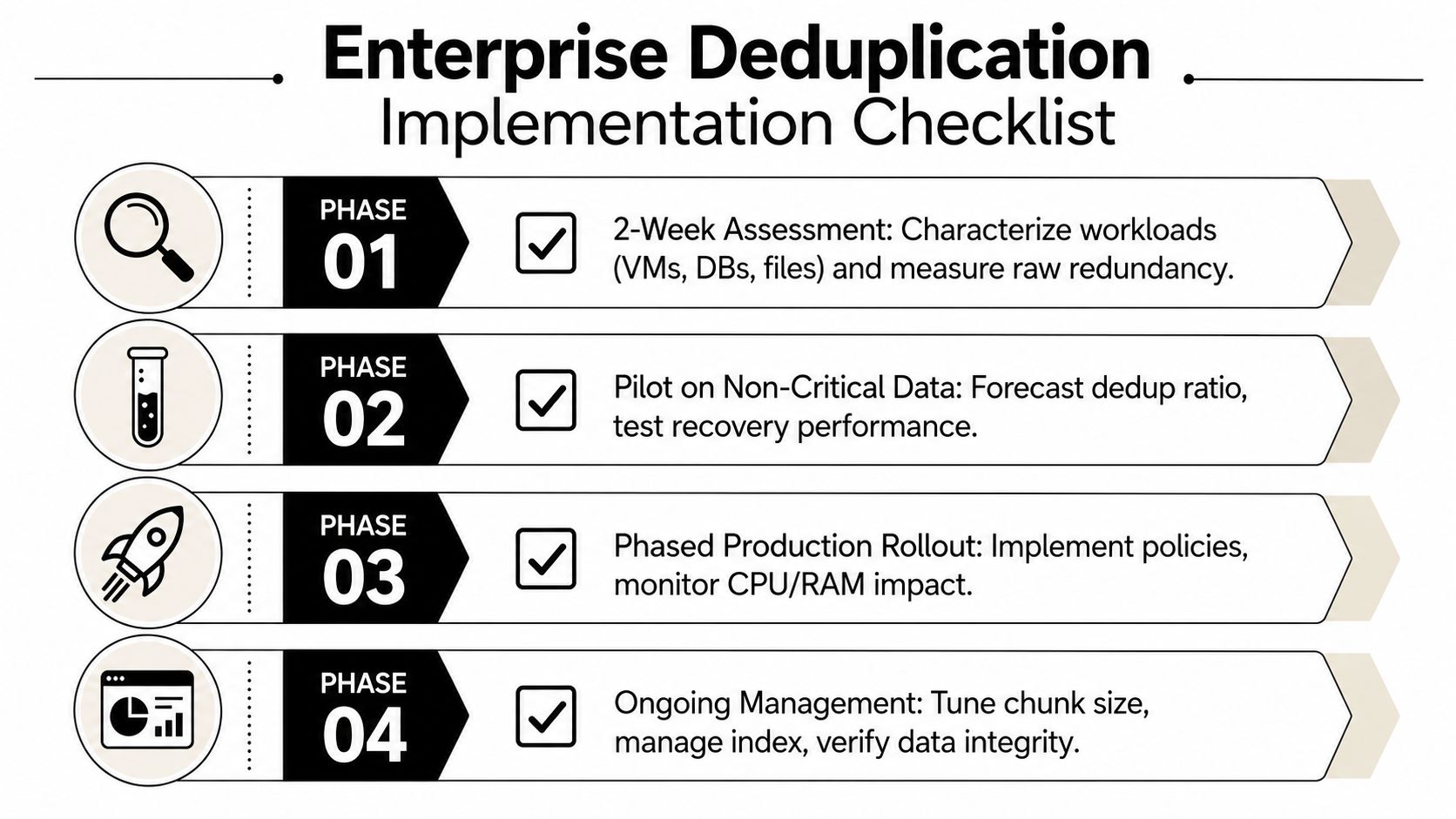

A four-phase enterprise deduplication implementation checklist chart showing steps for data assessment, pilot testing, rollout, and management.

Scale with the index and operations in mind

As deployment expands, size the fingerprint catalog from measured workload behavior. The IBM research anchor of about 10 GB per 200 TB of raw storage is a planning starting point, not a replacement for vendor sizing in its large-scale evaluation. Plan for index partitioning or sharding, fast cache media, retention policies, catalog backups, and temporary capacity if post-process deduplication is selected.

Evaluate vendors with one consistent rubric:

Algorithm choice: Supported hashes, verification methods, and chunking options.
Placement flexibility: Inline, post-process, source-side, and target-side modes.
Integration: Backup applications, databases, hypervisors, protocols, and replication.
Recovery evidence: Restore benchmarks, rebuild documentation, and integrity controls.
Operational fit: Monitoring, tuning, support responsiveness, and lock-in risk.

A platform your team can measure, size, and repair is safer than one with more features but unclear operating requirements. For hybrid deployment decisions, this on-premise to cloud migration guide offers context for deciding where storage functions should run.

When Deduplication Pays Off and When It Does Not

Deduplication earns its place when a workload stores many similar versions, changes incrementally, and remains under retention long enough for shared content to accumulate. An IDC survey found more than 50% of respondents were using deduplication or implementing it for part of their primary storage data in the IDC survey. Exchange, Windows file systems, SQL databases, web content, and Oracle databases were reported as common workloads.

Workload	Adoption Rate	Typical Dedupe Ratio	Recommendation
Exchange	Reported as a common workload	Workload-dependent	Test when messages and attachments repeat
Windows file systems	Reported as a common workload	Workload-dependent	Sample before choosing file-level or block-level policies
SQL databases	Reported as a common workload	Workload-dependent	Validate latency, backup format, and restores
Oracle databases	Reported as a common workload	Workload-dependent	Pilot separately from file and VM workloads
Web server content	Reported as a common workload	Workload-dependent	Measure shared assets and change patterns

The savings often weaken with already-compressed media, encrypted data that exposes little repetition, and latency-sensitive random writes. Application compression may also remove the patterns a storage system needs to match.

A high reduction ratio is not automatically a good result. Inline processing can consume CPU and memory before a write completes. Post-process deduplication may need temporary capacity, while either approach adds catalog management and recovery work. Use data migration best practices when moving repositories or changing storage tiers, then compare measured capacity, throughput, restore time, CPU, and memory use. Choose deduplication only when the capacity savings fit the performance and recovery budget.
